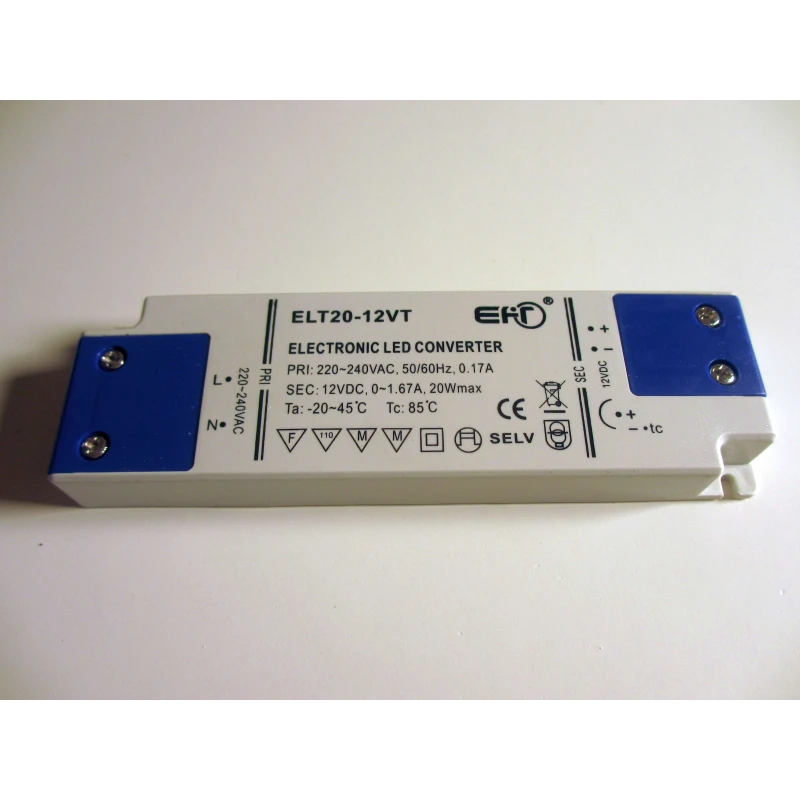

Power supply ELT20-12VT, 12V, 1,66A, 20W

Reference: 05-000002

Power supply ELT20-12VT,

220-240 V AC,

12 V DC, 1,67 A, 20W, IP4X ,

89 Items In Stock Warning: Last items in stock!

11,92 € Tax included

11,92 € per tk

0.1 kg

Data sheet

Model ELT20-12VT
Minimum input voltage - (V AC) 220
Input voltage - (V AC) 230
Maximum input voltage - (V AC) 240
Output voltage - (V DC) 12
Output power - (W) 20
Power supply type Constant voltage
Output current - (A) 1,67
Power factor - PF (cos φ) 0,5
Ambient temperature - (° C) -20 + 45
Efficiency - (%) 83
Short circuit protection Yes
Overload protection Yes
Temperature protection Yes
Width - (mm) 40
Length - (mm) 135
Height - (mm) 14
Weight - (g1pc) 65
Ingress protection - (IP) 4X
Fixing srew fixing
Connection screw terminal
Warranty - (y) 2
  • Reviews (1)
    • Rated 5.00 on the scale 1 - 5 based on 1 customer reviews
    Verified purchase

    Full function

    Was bought as spare. 100% compatible

    Was this comment useful to you? Yes No
    Report abuse
    Write your review!
