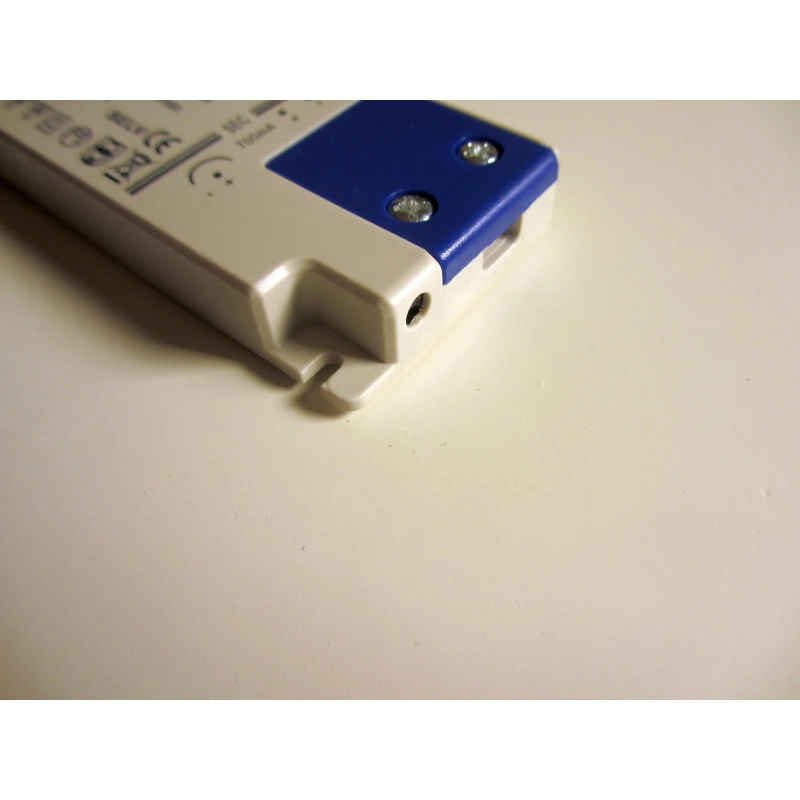

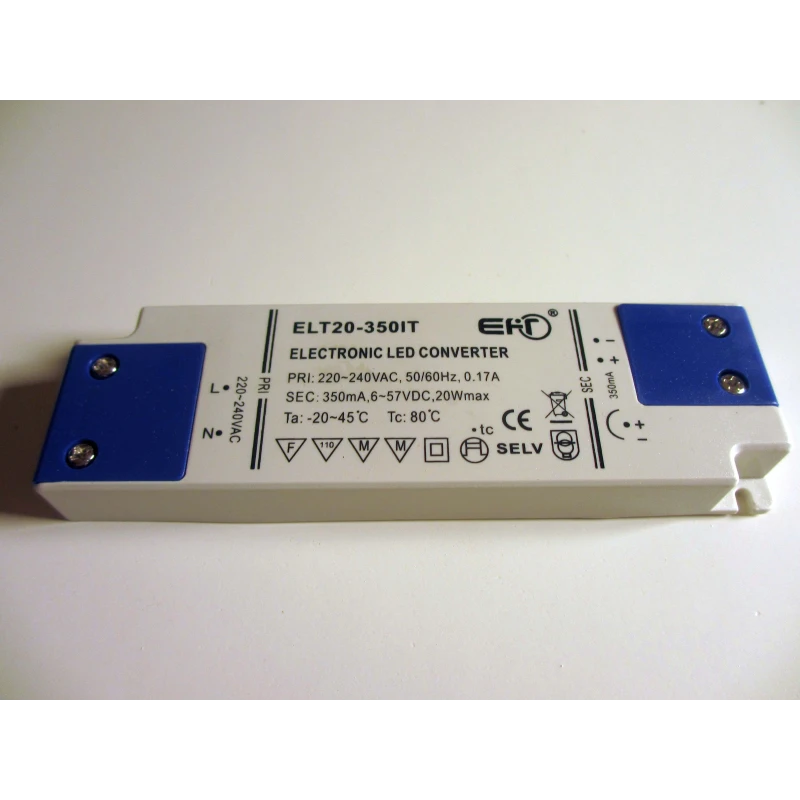

Power supply ELT20-350IT, 350mA, 3-57V, 20W
Reference: 05-000008
Power supply ELT20-350IT,
220-240 V AC,
350 mA, 3-57 V DC, 20W, IP4X
1 Item In Stock Warning: Last items in stock!
Data sheet
| Model | ELT20-350IT |
| Minimum input voltage - (V AC) | 220 |
| Input voltage - (V AC) | 230 |
| Maximum input voltage - (V AC) | 240 |
| Output power - (W) | 20 |
| Power supply type | Constant current |
| Min output voltage - (V DC) | 3 |
| Max output voltage - (V DC) | 57 |
| Output current - (mA) | 350 |
| Power factor - PF (cos φ) | 0,5 |
| Ambient temperature - (° C) | -20 + 45 |
| Efficiency - (%) | 86 |
| Short circuit protection | Yes |
| Overload protection | Yes |
| Temperature protection | Yes |
| Width - (mm) | 40 |
| Length - (mm) | 135 |
| Height - (mm) | 14 |
| Ingress protection - (IP) | 4X |
| Fixing | srew fixing |
| Weight - (g1pc) | 65 |
| Connection | screw terminal |
| Warranty - (y) | 2 |
