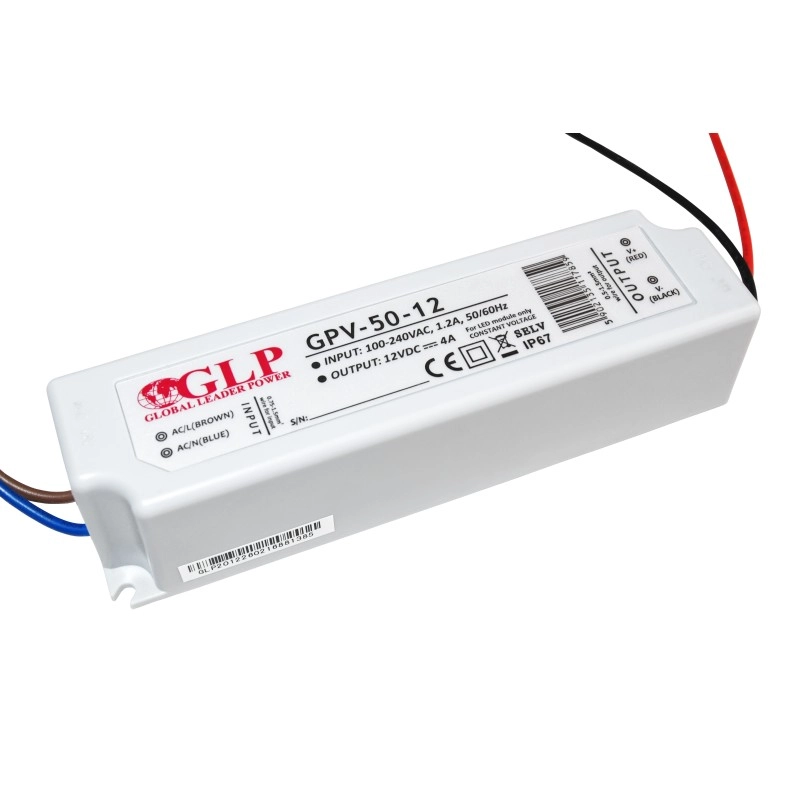

Power supply GPV-50-12, 12V, 4,16A, 50W

Reference: 05-000505

Power supply GPV-50-12,

90-264 V AC,

12 V DC, 4 A, 50W, IP67 ,

40 Items In Stock

15,56 € Tax included

15,56 € per tk

0.35 kg

Data sheet

Manufacturer GLP
Model GPV-50-12
Minimum input voltage - (V AC) 90
Input voltage - (V AC) 230
Maximum input voltage - (V AC) 264
Minimum input voltage - (V DC) 127
Maximum input voltage - (V DC) 370
Output voltage - (V DC) 12
Output power - (W) 48
Power supply type Constant voltage
Output current - (A) 4
Efficiency - (%) 82
Overvoltage protection 13,5 - 18,5 V, Hiccup - auto recovery
Short circuit protection Hiccup - auto recovery
Overload protection 150 - 200 %, Hiccup - auto recovery
Temperature protection 140 ± 10°C, auto recovery

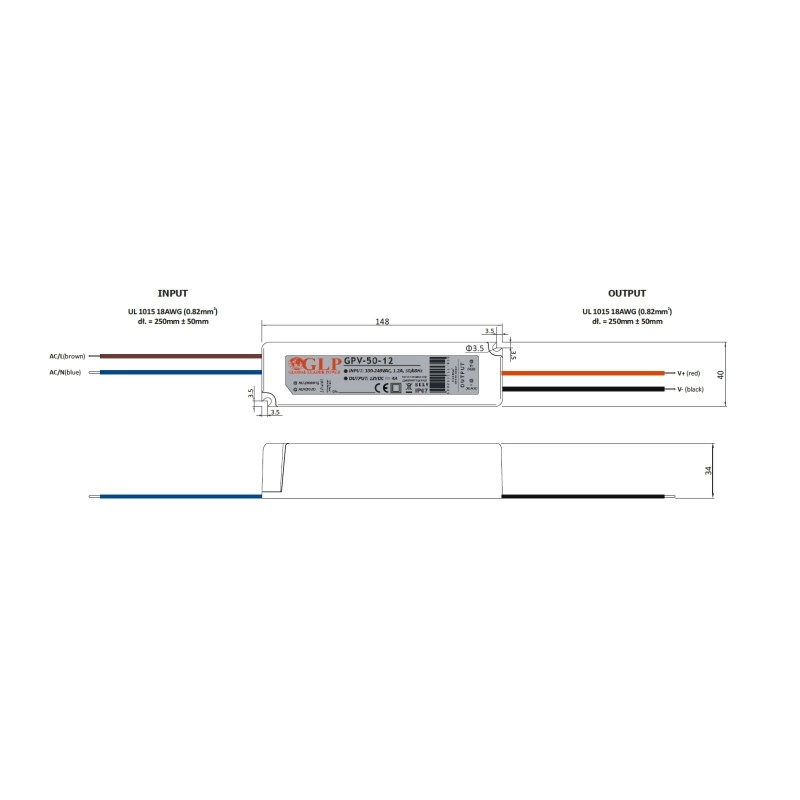

Width - (mm) 40
Length - (mm) 148
Length with cables - (cm) 18
Height - (mm) 34
Weight - (g1pc) 340
Ingress protection - (IP) 67
Fixing srew fixing
Connection cable connection
Input cable length - (cm) 25
Output cable length - (cm) 25
Input cable color blue/brown
Output cable color reb/black
Input wire corss-section - (mm²) 0,82
Output wire corss-section - (mm²) 0,82
Input wire corss-section - (AWG) 18
Output wire corss-section - (AWG) 18
Warranty - (y) 2
