Power supply HVA-12060X, 12V, 5A, 60W

Reference: 05-000025

Power supply HVA-12060X,

90-264 V AC,

12 V DC, 5 A, 60W, IP67 ,

7 Items In Stock

17,58 € Tax included

17,58 € per tk

0.4 kg

Data sheet

Model HVA-12060X
Minimum input voltage - (V AC) 90
Input voltage - (V AC) 230
Maximum input voltage - (V AC) 264
Output voltage - (V DC) 12
Output power - (W) 60
Power supply type Constant voltage
Output current - (A) 5
Power factor - PF (cos φ) 0,5
Efficiency - (%) 80
Short circuit protection Hiccup - auto recovery
Overload protection 120-150 %
Temperature protection 85 °C ± 5 °C

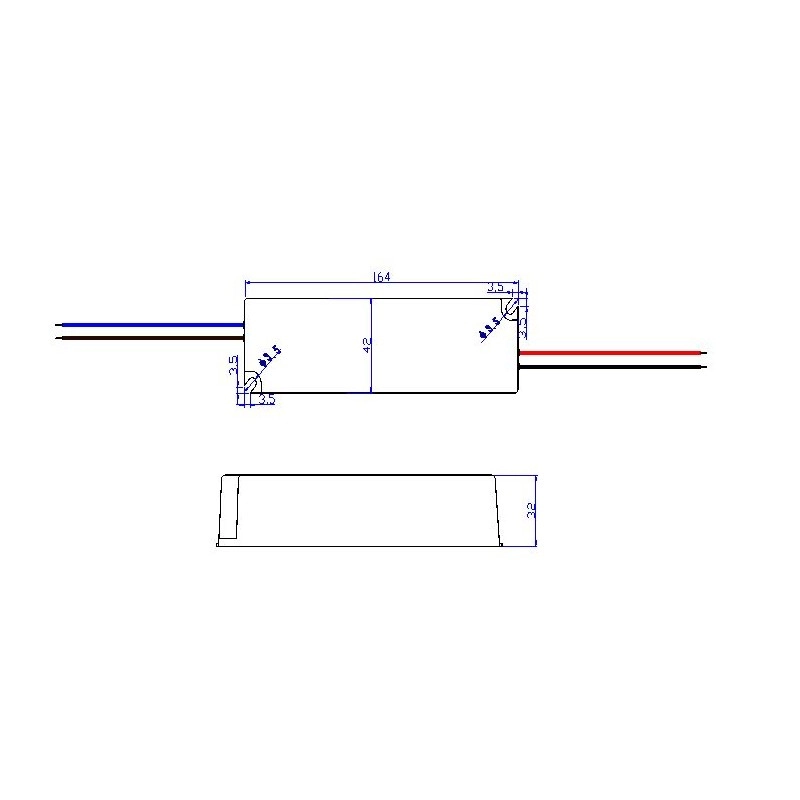

Width - (mm) 42
Length - (mm) 164
Height - (mm) 32
Weight - (g1pc) 372
Ingress protection - (IP) 67
Fixing srew fixing
Connection cable connection
Warranty - (y) 2
