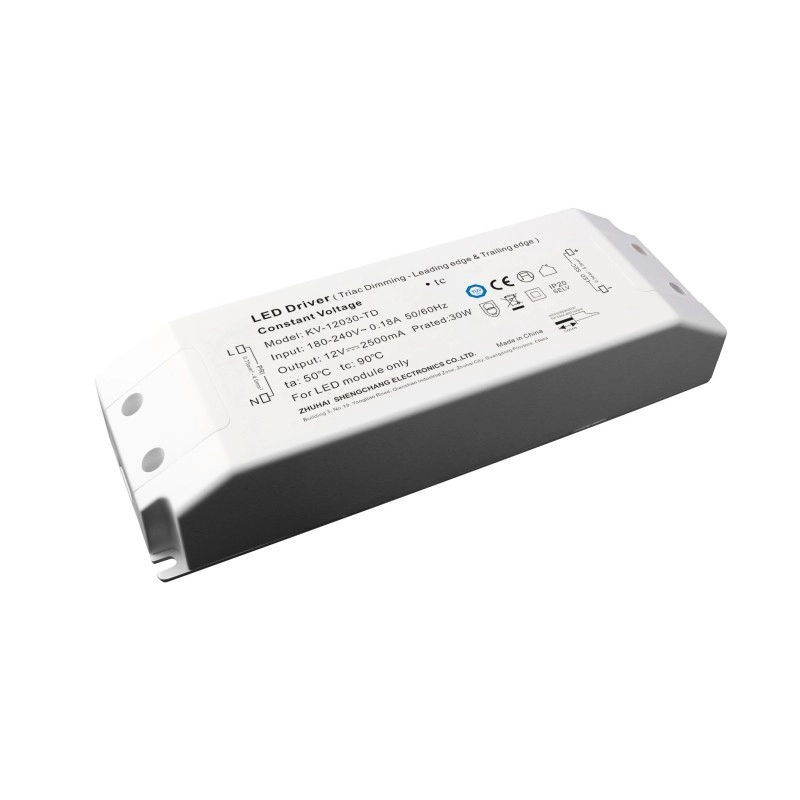

Power supply KV-12030-TD, 12V, 2,5A, 30W, DIM

Reference: 05-004426

Power supply KV-12030-TD,

180-240 V AC,

12 V DC, 2,5 A, 30W, IP20, DIM

2 Items In Stock

37,63 € Tax included

37,63 € per tk

0.6 kg

Add to wishlist

Data sheet

Manufacturer SC Power
Model KV-12030-TD
Minimum input voltage - (V AC) 180
Input voltage - (V AC) 230
Maximum input voltage - (V AC) 240
Output power - (W) 30
Minimum load 60 %
Power supply type Constant voltage
Output voltage - (V DC) 12
Output current - (A) 2,5
Power factor - PF (cos φ) 0,95
Power factor correction - (PFC) Yes
Activ power factor correction - (APFC) Yes
Ambient temperature - (° C) -40 + 60
Efficiency - (%) 81
Short circuit protection Hiccup - auto recovery
Overload protection 120% - Turns off. Need to re-power after over over load no longer present.
Dimming Yes
Can drive Mono
Triac Yes
Dimming range 0 - 100%
Dimming step smooth

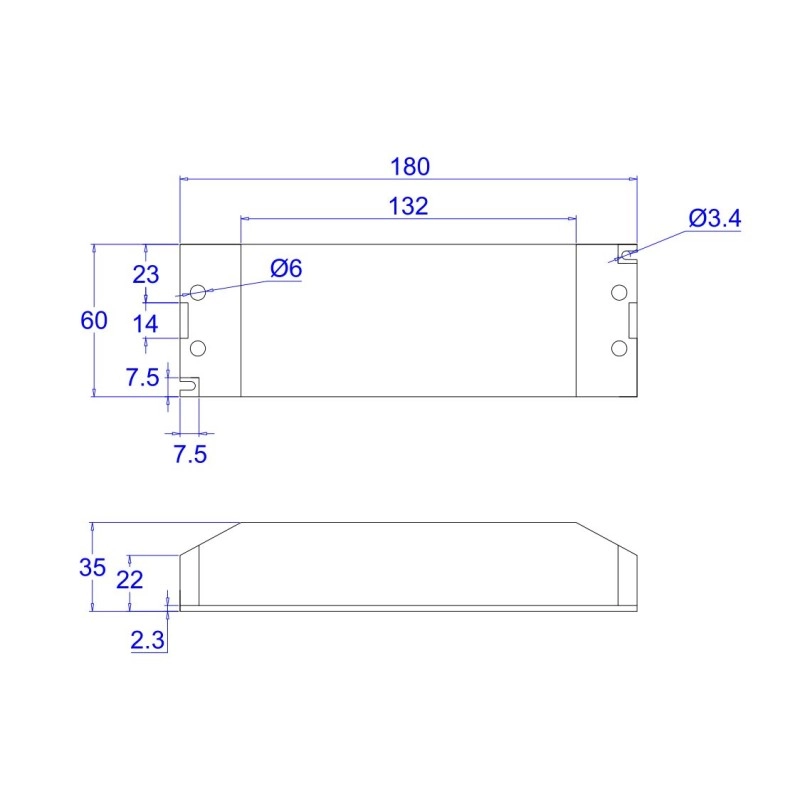

Width - (mm) 60
Length - (mm) 180
Height - (mm) 35
Ingress protection - (IP) 20
Fixing srew fixing
Weight - (g1pc) 450
Connection screw terminal
Input wire corss-section - (mm²) 0,75 - 4,0
Output wire corss-section - (mm²) 0,5 - 4,0
Warranty - (y) 2
