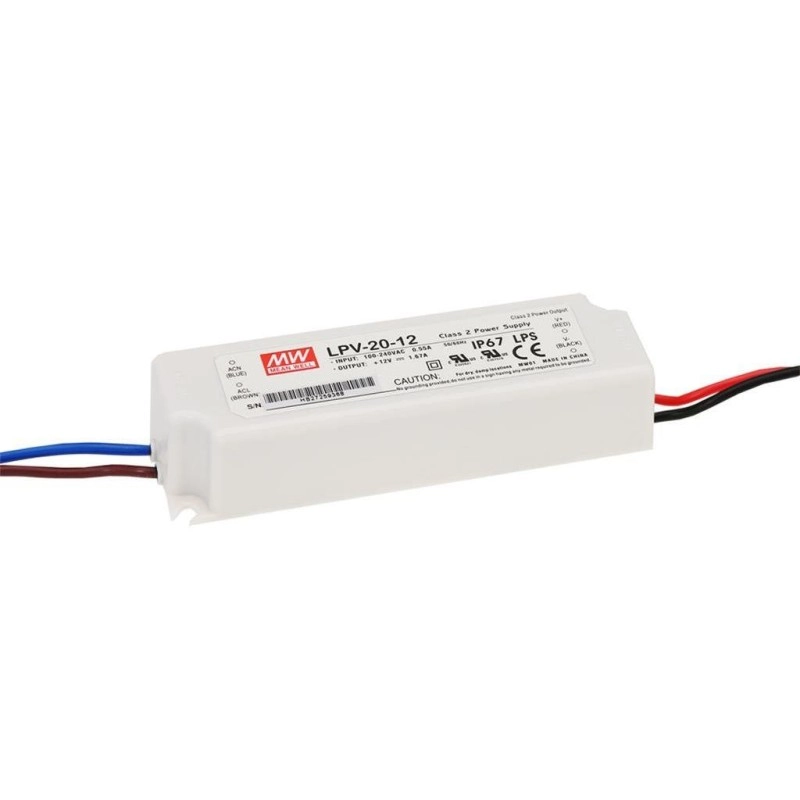

Power supply LPV-20-12, 12V, 1,67A, 20W
Reference: 05-000051
Manufacturer: Mean Well
Power supply LPV-20-12,
90-264 V AC,
12 V DC, 1,67 A, 20W, IP67
3 Items In Stock
Data sheet
Manufacturer | MEAN WELL |
Model | LPV-20-12 |
Minimum input voltage - (V AC) | 90 |
Input voltage - (V AC) | 230 |
Maximum input voltage - (V AC) | 264 |
Minimum input voltage - (V DC) | 127 |
Maximum input voltage - (V DC) | 370 |
Output power - (W) | 20 |
Power supply type | Constant voltage |
Output voltage - (V DC) | 12 |
Output current - (A) | 1,67 |
Ambient temperature - (° C) | -30 + 70 |
Efficiency - (%) | 81 |
Overvoltage protection | 13,8 - 16 V, Turns off. Need to re-power after over voltage no longer present. |
Overload protection | 110 - 150 %, Hiccup - auto recovery |
Width - (mm) | 35 |
Length - (mm) | 118 |
Height - (mm) | 26 |
Length with cables - (cm) | 16 |
Ingress protection - (IP) | 67 |
Fixing | srew fixing |
Weight - (g1pc) | 220 |
Connection | cable connection |
Input cable length - (cm) | 60 |
Output cable length - (cm) | 60 |
Input cable color | blue/brown |
Output cable color | reb/black |
Input wire corss-section - (mm²) | 0,75 |
Output wire corss-section - (mm²) | 0,75 |
Input wire corss-section - (AWG) | 18 |
Warranty - (y) | 2 |
Output wire corss-section - (AWG) | 18 |
Manufacturer warranty - (y) | 2 |
