LED strip LR00863, 2700K, 12V, 12W/m, 880lm/m, IP20, CRI90

Reference:

LED strip LR00863, warm white, 2700 °K,

12V DC, 12 W/m, 880 lm/m, SMD0603,

50 000 hours, IP20, CRI90,

Delivery time 2...4 weeks Warning: Last items in stock!

12,75 € Tax included

12,75 € per m

0.12 kg

The minimum purchase order quantity for the product is 5

Sort

Quantity

Rating: Be the first to write a review!

Data sheet

Supply voltage - (V DC)	12
Power - (W1m)	12
LED strip efficiency - (lm1W)	74
Energy class	G
Dimming	dimmer/PWM

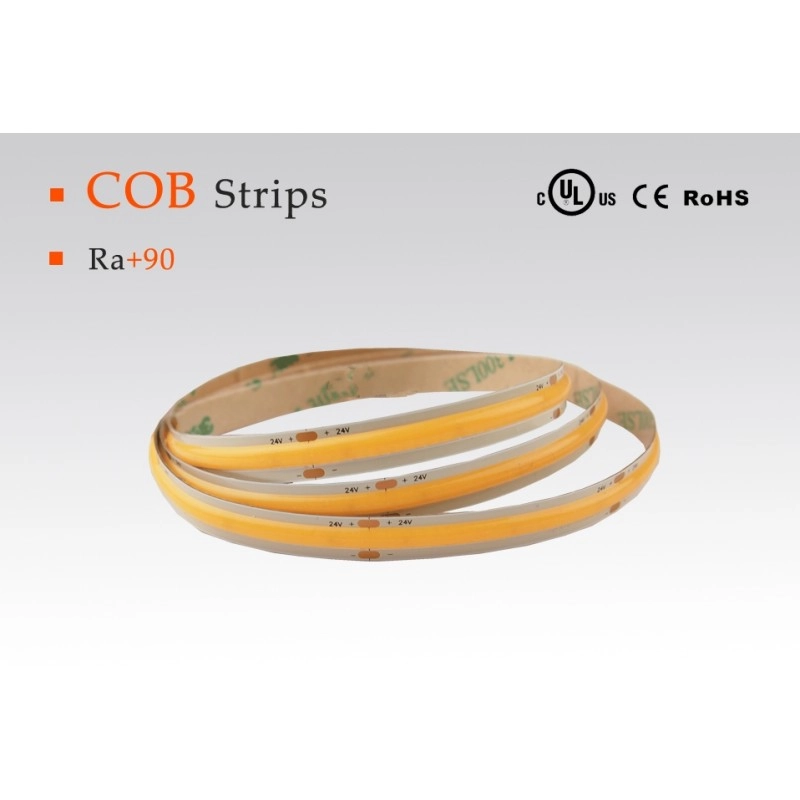

Strip type	COB
Beam angle - (°)	160
LED per meter	504
Strip architecture - (CC-CV)	Constant voltage - (CV)
Color sheme	Mono
Color temperature - warm white - (°K)	2700
Brightness - warm white - (lm1m)	880
Color rendering index - (CRI)	90
Diode type	SMD0603
Estimated service time (L70) - h	50000
LED manufacturer	Epistar

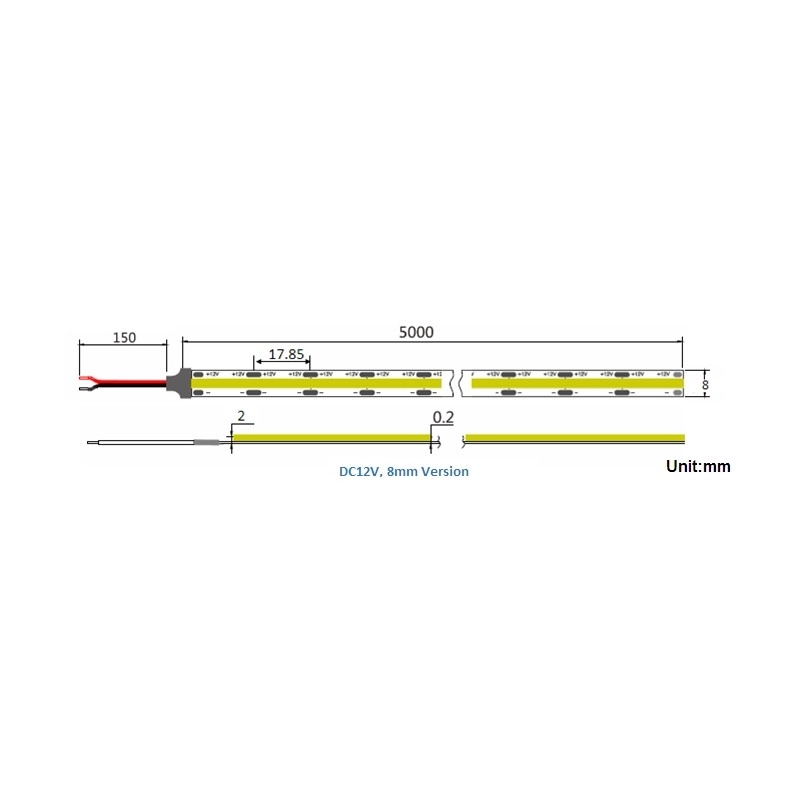

Width - (mm)	8
Height - (mm)	3
Minimum strip length (cutting step) - (mm)	17,85
Type	flexible
Fixing	double-sided tape
Strip IP	20
IP description	uncovered
Warranty - (y)	2
Quantity in package - (m)	5

More info

Regular brightness constant voltage LED strip, which recommended length is about 5 meter. With longer strip there may be visible difference of brightness, compared to start and end of strip. To avoid this, a higher voltage version can be used.

Ingress protection (IP) 20 is suitable for places where the strip is covered, usually with LED profile. Otherwise, falling dust may cause malfunction or even damage to the LED strip. No suitable for moisturized places.

5 meter strip has about 15 cm cable. Custom length can also be ordered.

Strip can be cut from cutting marks. When IP is more than 20 there is also need additional end caps to fulfill corresponding IP requirements. When choosing between different end caps, please pay attention to width. Different end caps are available, depending from strip width.

To connect strip to each other or to power supply (or dimmer), different connectors are available. When choosing these please pay attention to LED strip measures. There are many different types available and these cant be use to replace each other.

Usually strips are in length 5 meter. Custom length LED-strips with custom length power cables can be ordered. When ordering less than 5 meter please specify power cable length, otherwise strip may be without power cable.

Attention! If the product is customized, the final price may also change.

Given prices are for 1 meter.
