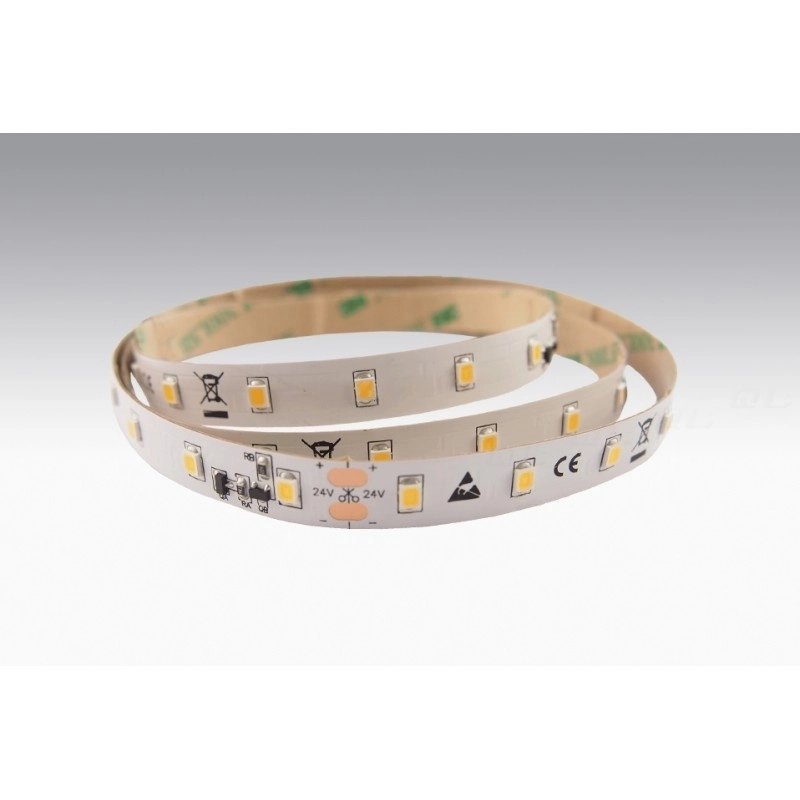

LED strip LR02122, 6000K, 24V, 11.5W/m, 2210lm/m, IP67, CRI80
Reference:
LED strip LR02122, cold white, 6000 °K,
24V DC, 11.5 W/m, 2210 lm/m, SMD2835,
50 000 hours, IP67, CRI80
Delivery time 2...4 weeks
Data sheet
Supply voltage - (V DC) | 24 |
Power - (W1m) | 11,5 |
LED strip efficiency - (lm1W) | 193 |
Energy class | B |
Dimming | dimmer |
Beam angle - (°) | 120 |
LED per meter | 64 |
Strip architecture - (CC-CV) | Constant current - (CC) |
Strip type | SMD |
Color sheme | Mono |
Color temperature - cold white - (°K) | 6000 |
Brightness - cold white - (lm1m) | 2210 |
Color rendering index - (CRI) | 80 |
Diode type | SMD2835 |
Estimated service time (L70) - h | 50000 |
LED manufacturer | Epistar |
Width - (mm) | 12 |
Minimum strip length (cutting step) - (mm) | 125 |
Height - (mm) | 4 |
Type | flexible |
Fixing | double-sided tape / clip |
Strip IP | 67 |
IP description | silicone tube |
Warranty - (y) | 2 |
Quantity in package - (m) | 5 |
More info
Super bright constant current LED strip, which recommended length is about 12 meter. With longer strip there may be visible difference of brightness, compared to start and end of strip. To avoid this, a higher voltage version can be used.
Ingress protection (IP) 67 means that this strip is enclosed in silicone tube and thus suitable for moisturized and wet places. However duirng to install please avoid damage to silicone tube, otherwise there can be damage to LED strip caused from moisture. We strongly recommen to use also clips for fixing, double sided tape may be not enough in wet conditions.
5 meter strip has about 15 cm cable. Custom length can also be ordered.
Strip can be cut from cutting marks. When IP is more than 20 there is also need additional end caps to fulfill corresponding IP requirements. When choosing between different end caps, please pay attention to width. Different end caps are available, depending from strip width.
To connect strip to each other or to power supply (or dimmer), different connectors are available. When choosing these please pay attention to LED strip measures. There are many different types available and these cant be use to replace each other.
Usually strips are in length 5 meter. Custom length LED-strips with custom length power cables can be ordered. When ordering less than 5 meter please specify power cable length, otherwise strip may be without power cable.
Attention! If the product is customized, the final price may also change.
Given prices are for 1 meter.
