LED strip LR07298, green, 24V, 8.5W/m, IP67

Reference:

LED strip LR07298, green,

24V DC, 8.5 W/m, SMD2216,

- hours, IP67,

Delivery time 2...4 weeks Warning: Last items in stock!

13,59 €

13,59 € per tk

The minimum purchase order quantity for the product is 50

Length

Quantity

Rating: Be the first to write a review!

Data sheet

Supply voltage - (V DC)	24
Power - (W1m)	8,5
Energy class	G
Dimming	dimmer/PWM
Strip type	SMD
LED per meter	240
Strip architecture - (CC-CV)	Constant voltage - (CV)
Color sheme	Mono
Color - green - (nm)	green
Diode type	SMD2216
Estimated service time (L70) - h	-

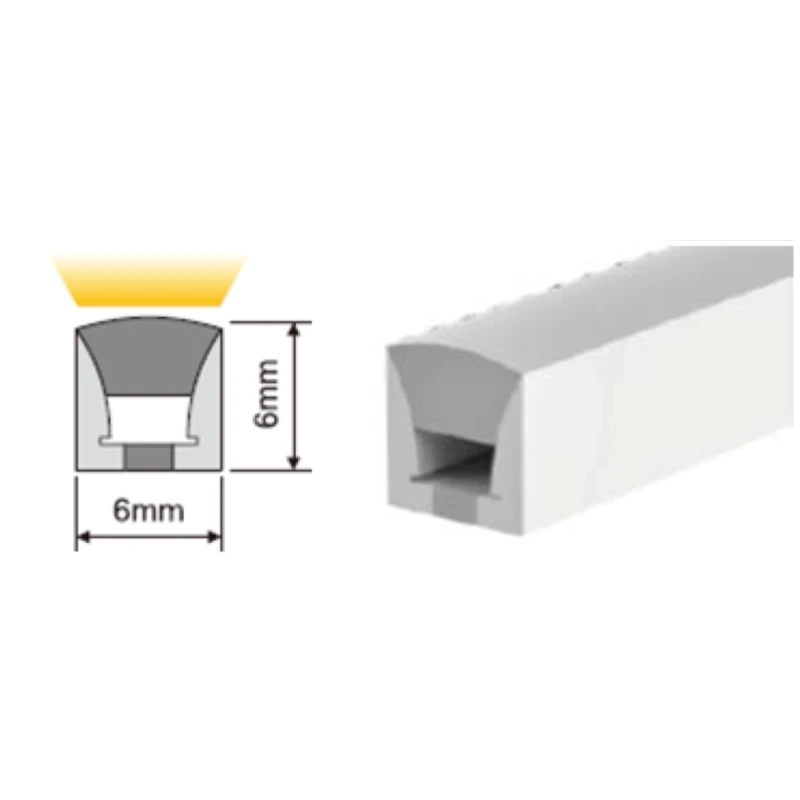

Width - (mm)	6
Height - (mm)	6
Minimum strip length (cutting step) - (mm)	25
Type	flexible
Length - (m)	1

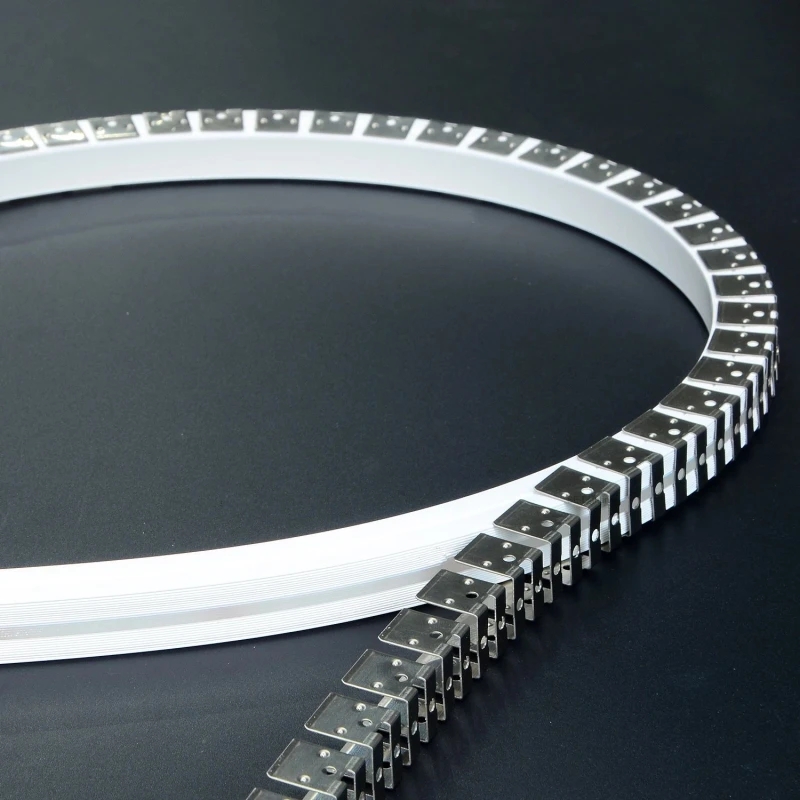

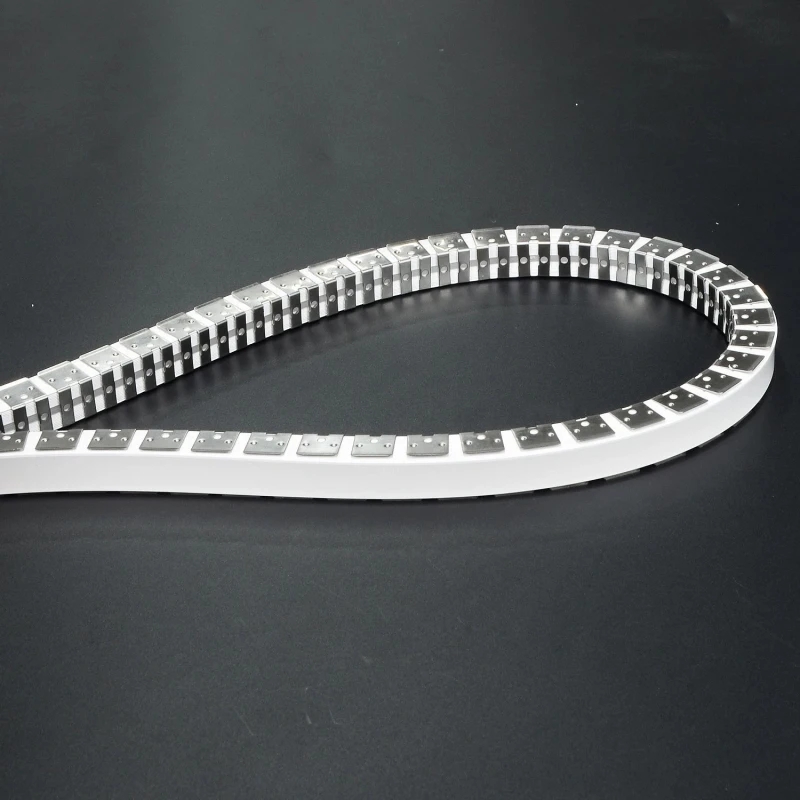

Fixing	double-sided tape / clip
Strip IP	67
IP description	silicone tube
Warranty - (y)	2
Manufacturer warranty - (y)	2
Quantity in package - (pc)	1

More info

Regular brightness constant voltage LED strip, which recommended length is about 5 meter. With longer strip there may be visible difference of brightness, compared to start and end of strip. To avoid this, a higher voltage version can be used.

Ingress protection (IP) 67 means that this strip is enclosed in silicone tube and thus suitable for moisturized and wet places. However duirng to install please avoid damage to silicone tube, otherwise there can be damage to LED strip caused from moisture. We strongly recommen to use also clips for fixing, double sided tape may be not enough in wet conditions.

5 meter strip has about 15 cm cable. Custom length can also be ordered.

Strip can be cut from cutting marks. When IP is more than 20 there is also need additional end caps to fulfill corresponding IP requirements. When choosing between different end caps, please pay attention to width. Different end caps are available, depending from strip width.

To connect strip to each other or to power supply (or dimmer), different connectors are available. When choosing these please pay attention to LED strip measures. There are many different types available and these cant be use to replace each other.

The manufacturer recommends using an aluminum profile for additional cooling in case of a power higher than 15W/m.

Usually strips are in length 5 meter. Custom length LED-strips with custom length power cables can be ordered. When ordering less than 5 meter please specify power cable length, otherwise strip may be without power cable.

Attention! If the product is customized, the final price may also change.

Given prices are for 1 meter.
