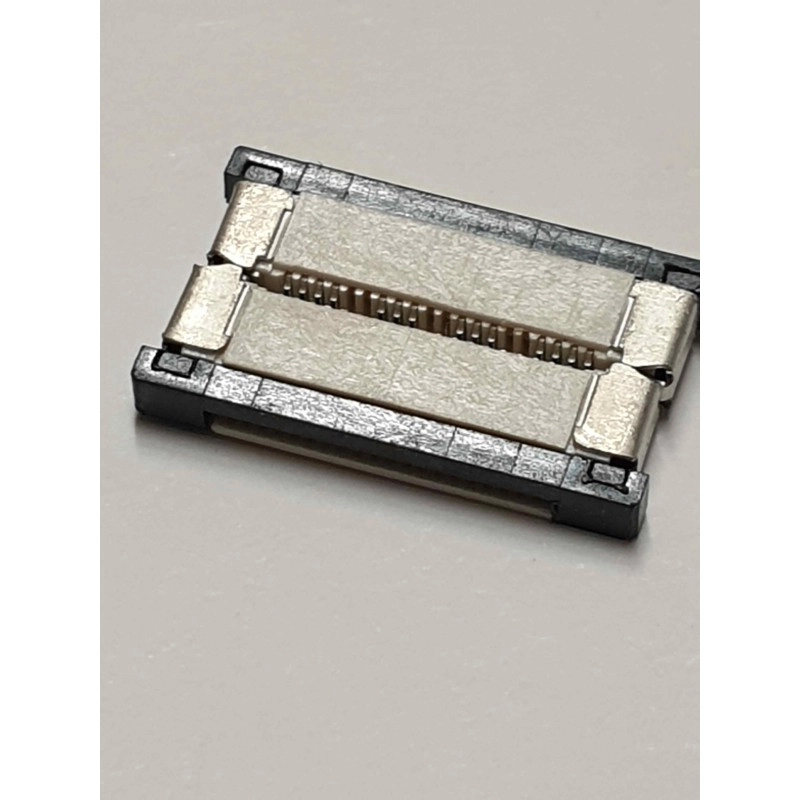

LED strip connector LRA0006, strip to strip, no wire, "I", 4 pins, 10 mm
Reference: 16-000006
LED strip connector LRA0006,
strip to strip, no wire,
4 pins, 10 mm, SMD,
RGB,
IP20
Delivery time 2...4 weeks
Data sheet
Strip max width - (mm) | 10 |
Number of contatcs | 4 |
Suitable for LED strip | RGB |
Max voltage - (V DC) | 24 |
Max current - (A) | 4 |
Strip type | SMD |
Width - (mm) | 16 |
Length - (mm) | mm |
Height - (mm) | mm |
Weight - (g1pc) | 2 |
Strip IP | 20 |
Function | continuation |
Connection shape | "I" |
Materials | plastic |
Warranty - (y) | 2 |
More info

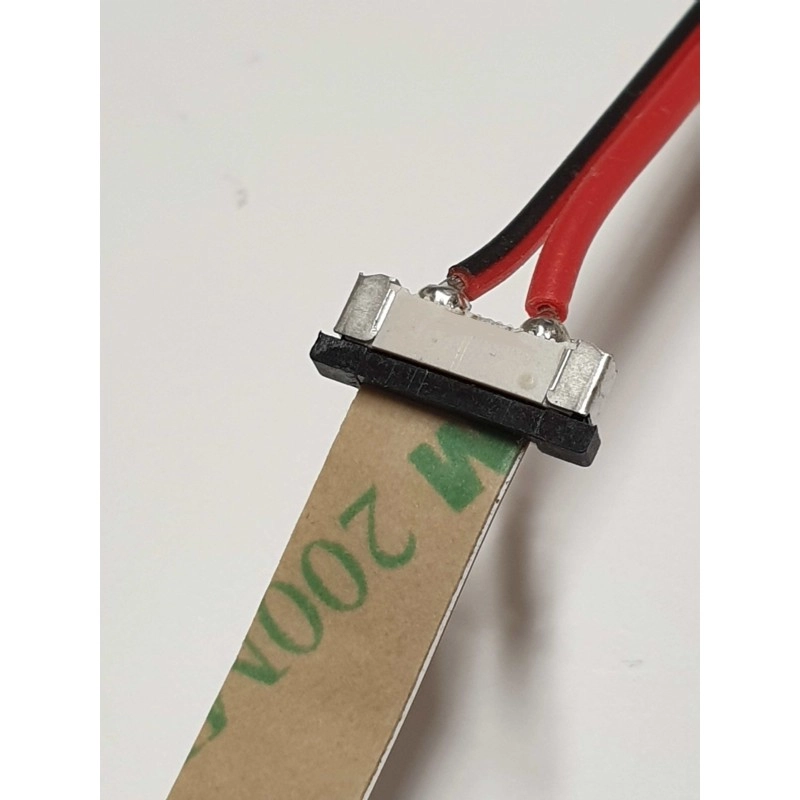

For a better connection, you can use soldering to connect the strips, but this is not possible every time. Then it's good to use the fast connection.
Please pay attention that the quick connection can be used at either end of the strip. This causes a situation where the colors of the cable or contact markings are different, i.e. in a mirror image.

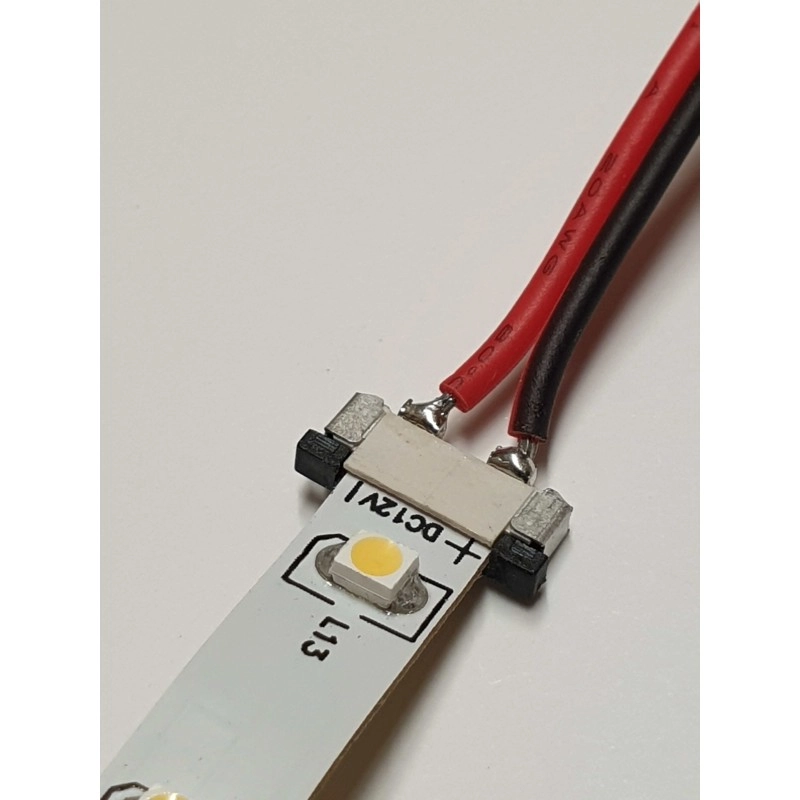

For this connection, it is important that the moving part of the mounting clip is on the side of the strip where there are no contacts. When connecting the other way around, there is no contact.
