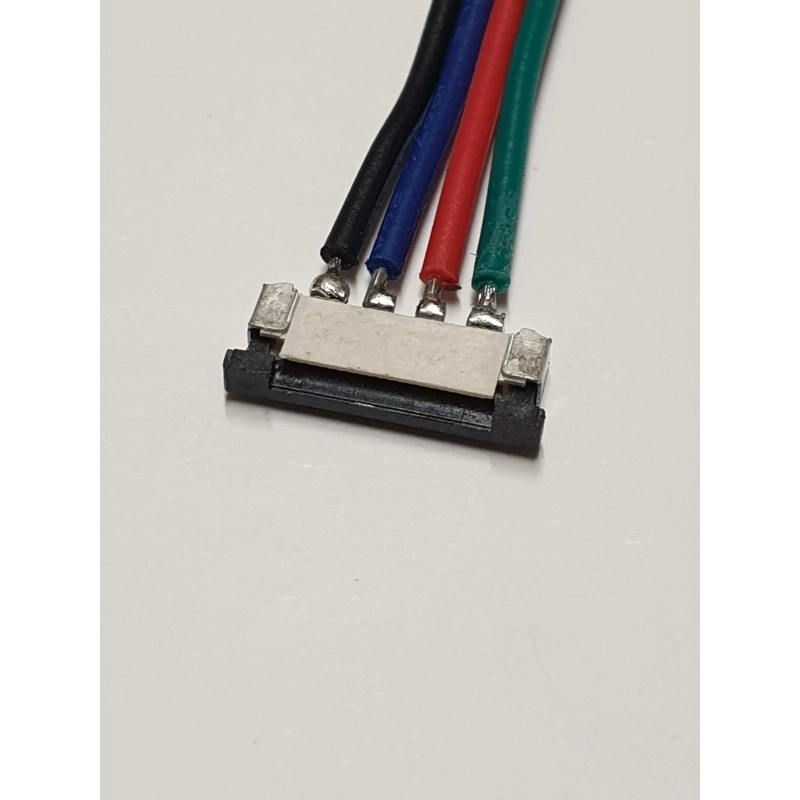

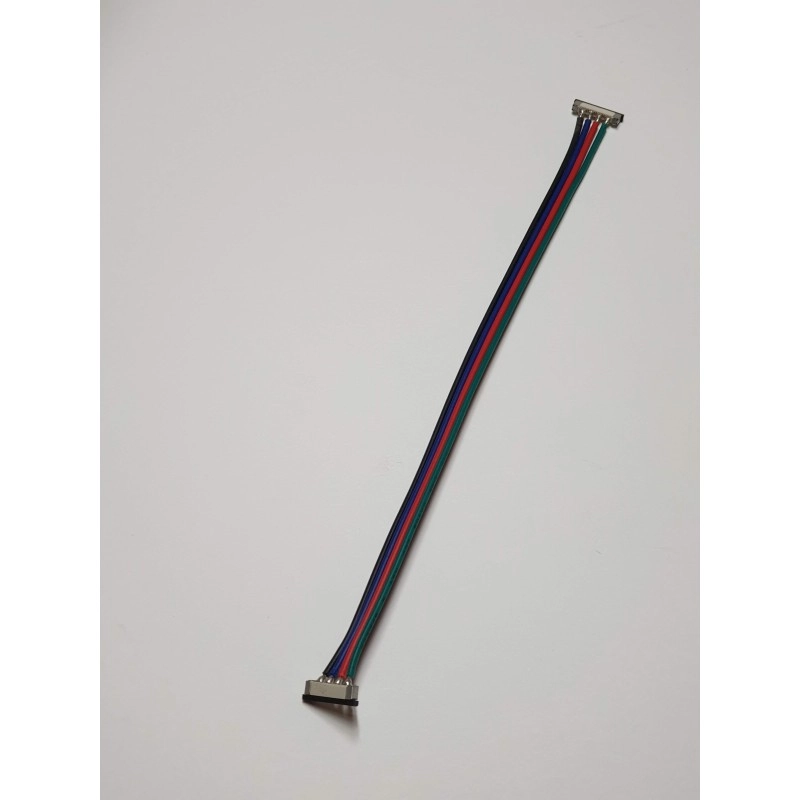

LED strip connector LRA0016, strip to strip, with wire, 4 pins, 10 mm

Reference: 16-000016

LED strip connector LRA0016,

strip to strip, with wire,

4 pins, 10 mm, SMD,

RGB,

IP20,

Delivery time 2...4 weeks Warning: Last items in stock!

1,13 € Tax included

1,13 € per tk

0.1 kg

Quantity

Rating: Be the first to write a review!

Data sheet

Strip max width - (mm)	10
Number of contatcs	4
Suitable for LED strip	RGB
Max voltage - (V DC)	24
Max current - (A)	4
Strip type	SMD
Width - (mm)	16
Height - (mm)	mm
Weight - (g1pc)	30
Strip IP	20
Cable color	green/red/blue/black
Cable length - (cm)	19
Wire corss-section - (mm²)	0,52
Wire corss-section - (AWG)	20
Function	continuation
Materials	plastic
Warranty - (y)	2

More info

For a better connection, you can use soldering to connect the strips, but this is not possible every time. Then it's good to use the fast connection.

Please pay attention that the quick connection can be used at either end of the strip. This causes a situation where the colors of the cable or contact markings are different, i.e. in a mirror image.

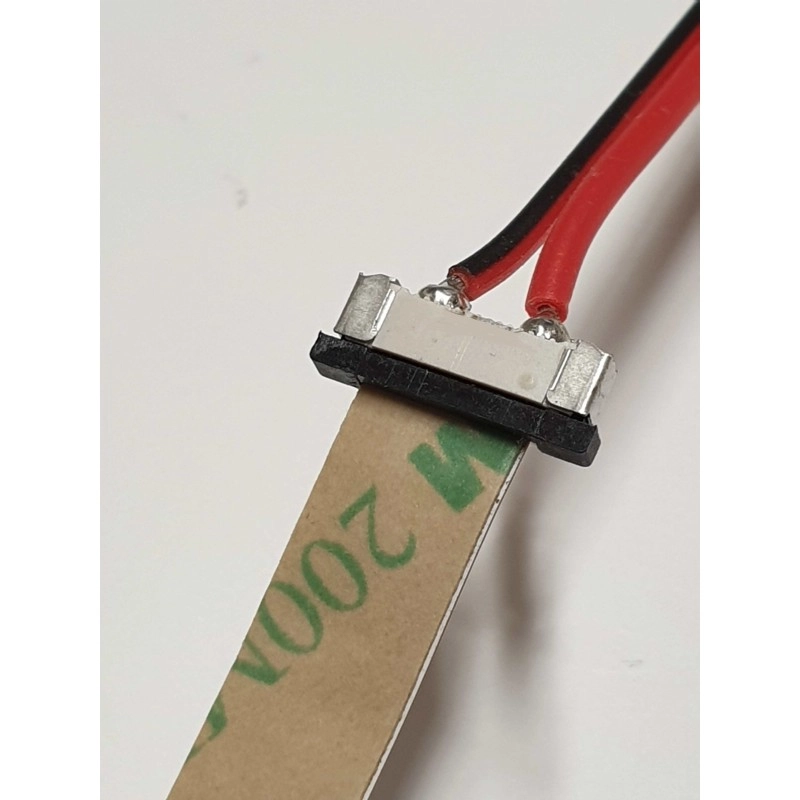

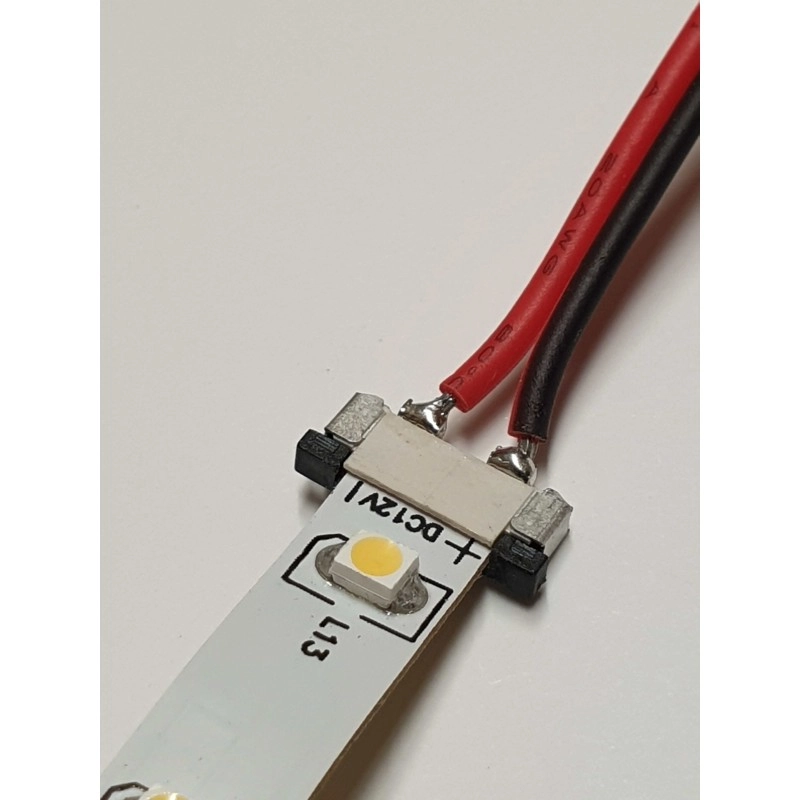

For this connection, it is important that the moving part of the mounting clip is on the side of the strip where there are no contacts. When connecting the other way around, there is no contact.
