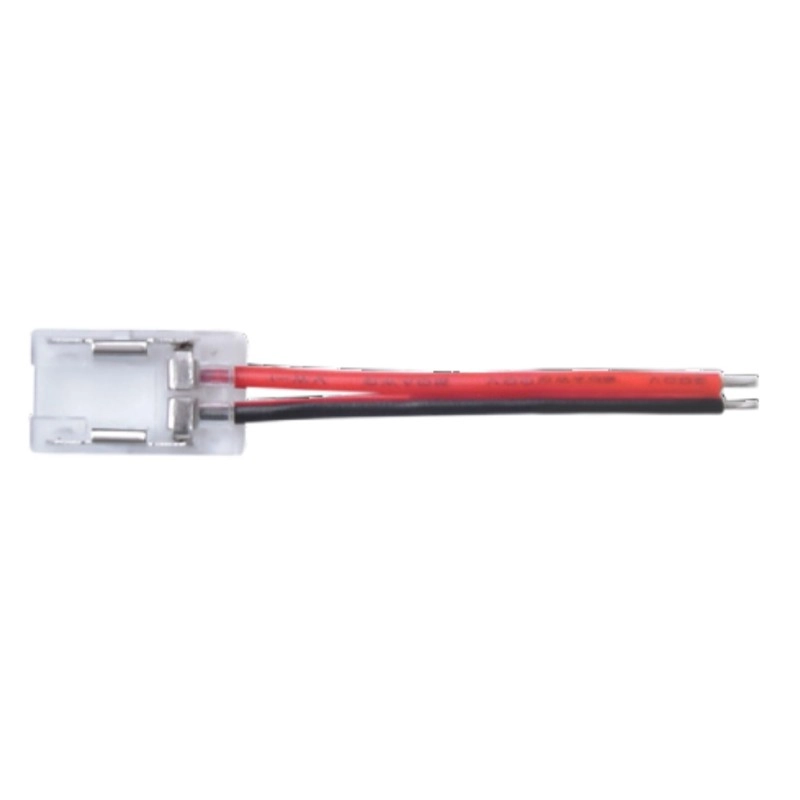

LED strip connector LRA0033, strip to power, with wire, 2 pins, 5 mm
Reference:
LED strip connector LRA0033,
strip to power, with wire,
2 pins, 5 mm, COB,
Mono, DTW,
IP20
Delivery time 2...4 weeks
Data sheet
Strip max width - (mm) | 5 |
Number of contatcs | 2 |
Suitable for LED strip | Mono, DTW |
Max voltage - (V DC) | 24 |
Max current - (A) | 3,5 |
Strip type | COB |
Width - (mm) | 6,5 |
Height - (mm) | mm |
Weight - (g1pc) | 10 |
Strip IP | 20 |
Body color | transparent |
Cable length - (cm) | 15 |
Cable color | whie/white |
Wire corss-section - (mm²) | 0,52 |
Wire corss-section - (AWG) | 20 |
Function | power connection |
Materials | PC, copper |
Warranty - (y) | 2 |
More info

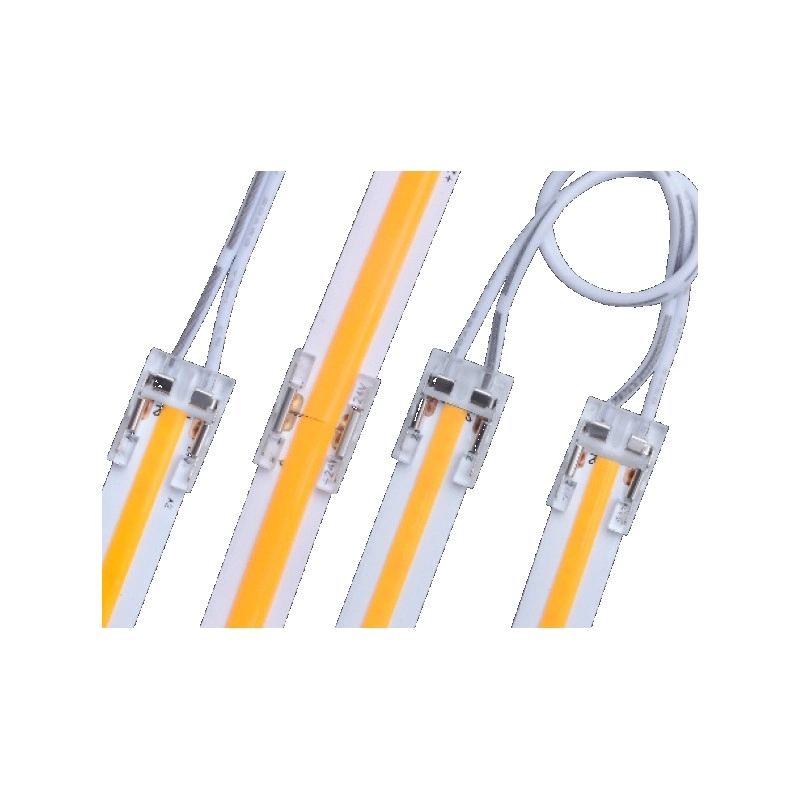

For a better connection, you can use soldering to connect the strips, but this is not possible every time. Then it's good to use the fast connection.
Please pay attention that the quick connection can be used at either end of the strip. This causes a situation where the colors of the cable or contact markings are different, i.e. in a mirror image.
For this connection, the connection terminal is pressed through the LED strip. For this you can use, for example, pincers.
