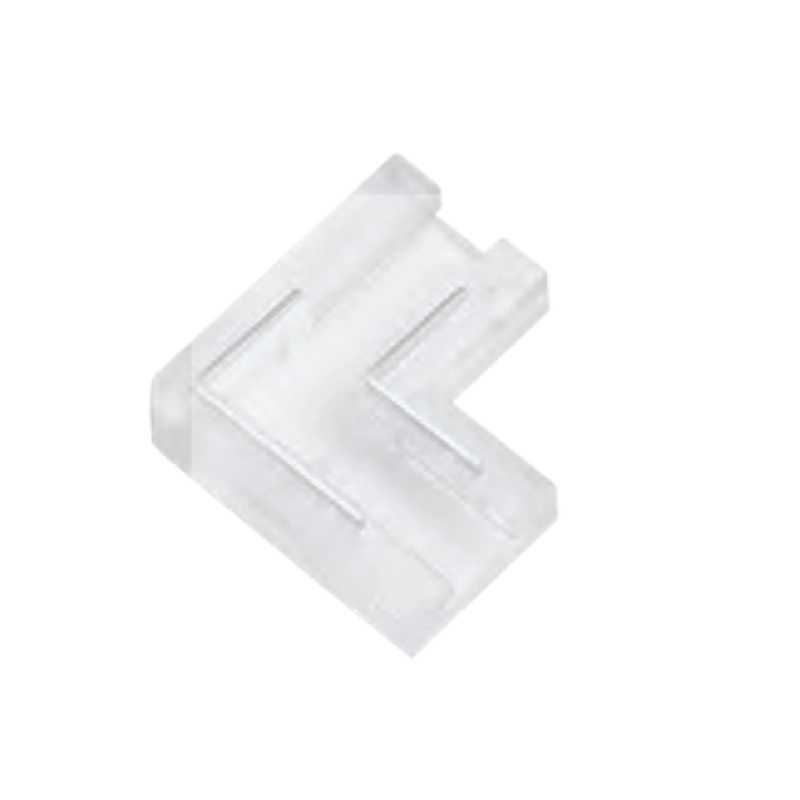

LED strip connector LRA0038, strip to strip, no wire, "L", 2 pins, 8 mm

Reference: 16-000054

LED strip connector LRA0038,

strip to strip, no wire,

2 pins, 8 mm, COB,

Mono, DTW,

IP20,

Delivery time 2...4 weeks Warning: Last items in stock!

1,25 € Tax included

1,25 € per tk

0.05 kg

The minimum purchase order quantity for the product is 20

Quantity

Rating: Be the first to write a review!

Data sheet

Strip max width - (mm)	8
Number of contatcs	2
Suitable for LED strip	Mono, DTW
Max voltage - (V DC)	24
Max current - (A)	4
Strip type	COB
Width - (mm)	9,6
Length - (mm)	mm
Height - (mm)	mm
Weight - (g1pc)	7
Strip IP	20
Body color	transparent
Function	continuation
Connection shape	"L"
Materials	PC, copper
Warranty - (y)	2

More info

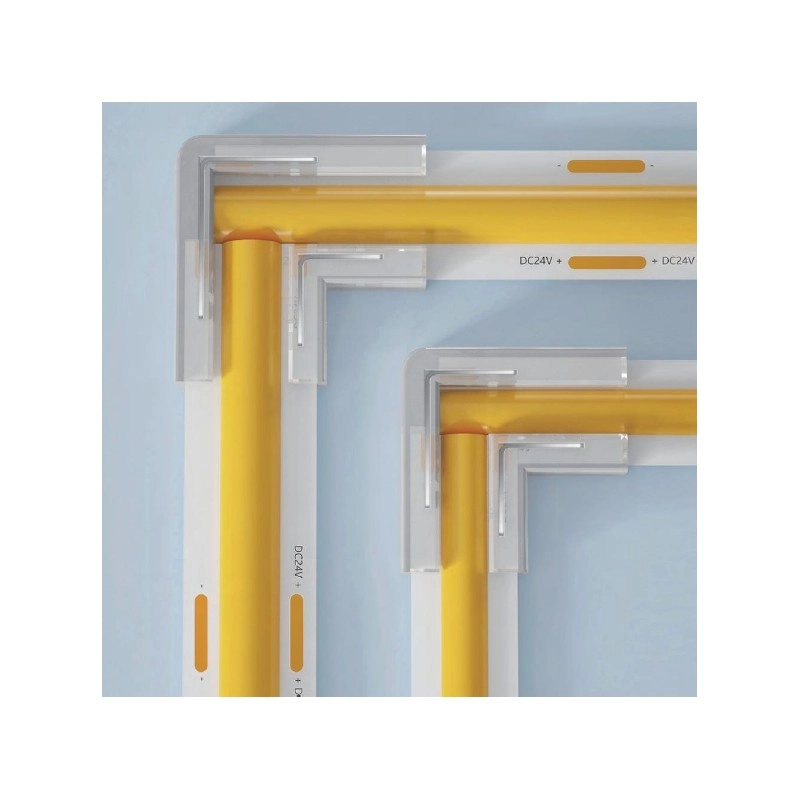

For a better connection, you can use soldering to connect the strips, but this is not possible every time. Then it's good to use the fast connection.

Please pay attention that the quick connection can be used at either end of the strip. This causes a situation where the colors of the cable or contact markings are different, i.e. in a mirror image.

For this connection, the connection terminal is pressed through the LED strip. For this you can use, for example, pincers.
