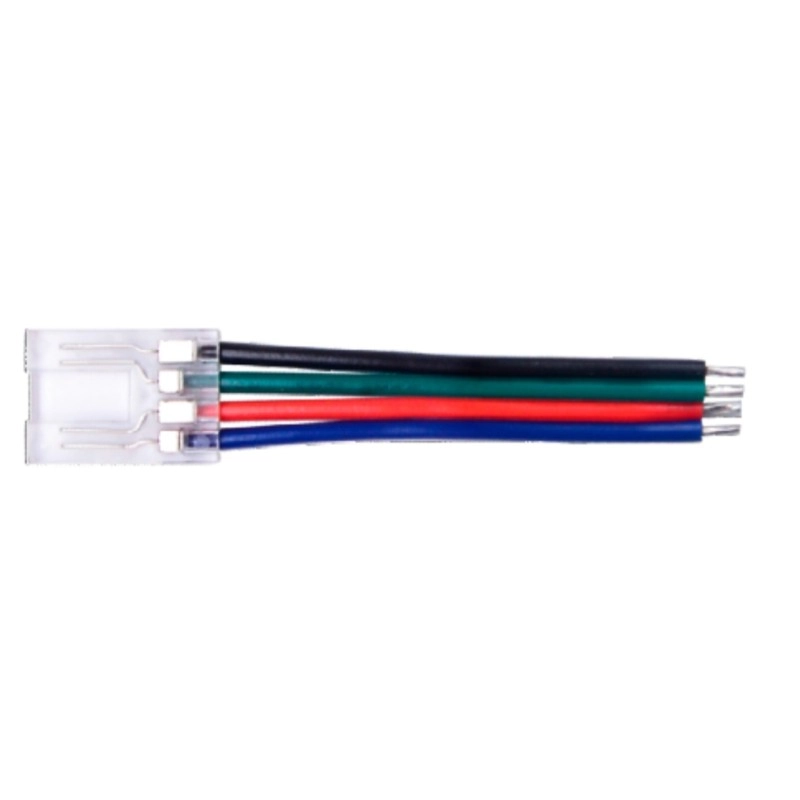

LED strip connector LRA0048, strip to power, with wire, 4 pins, 10 mm

Reference:

LED strip connector LRA0048,

strip to power, with wire,

4 pins, 10 mm, COB,

RGB,

IP20

Delivery time 2...4 weeks

2,71 € Tax included

2,71 € per tk

0.05 kg

The minimum purchase order quantity for the product is 20

Add to wishlist

Data sheet

Strip max width - (mm) 10
Number of contatcs 4
Suitable for LED strip RGB
Max voltage - (V DC) 24
Max current - (A) 3,5
Strip type COB
Width - (mm) 11,6
Height - (mm) mm
Weight - (g1pc) 14
Strip IP 20
Body color transparent
Cable length - (cm) 15
Cable color blue/red/green/black
Wire corss-section - (mm²) 0,52
Wire corss-section - (AWG) 20
Function power connection
Materials PC
Warranty - (y) 2

More info

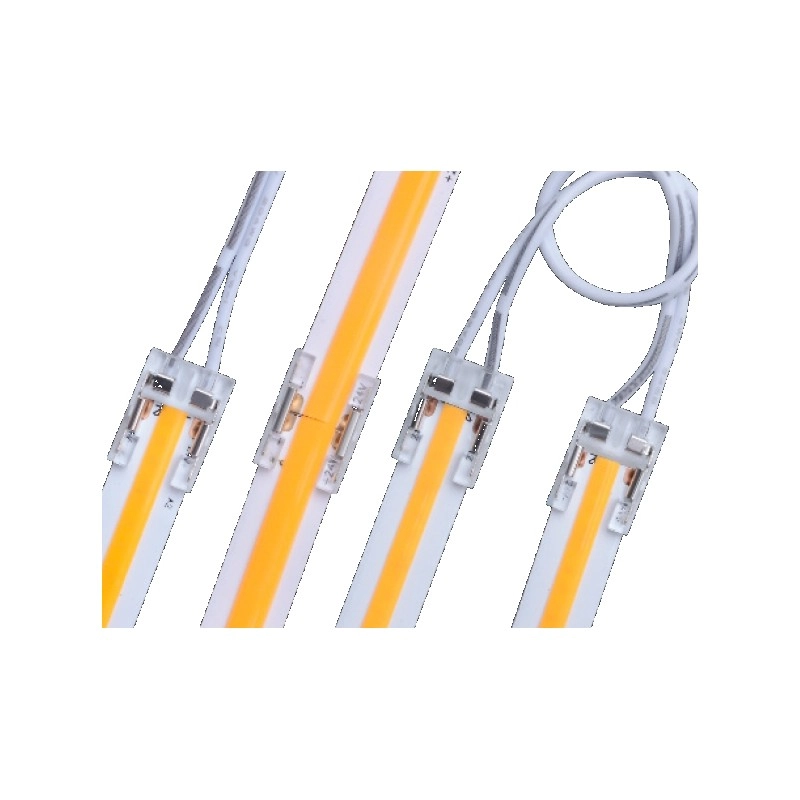

For a better connection, you can use soldering to connect the strips, but this is not possible every time. Then it's good to use the fast connection.

Please pay attention that the quick connection can be used at either end of the strip. This causes a situation where the colors of the cable or contact markings are different, i.e. in a mirror image.

For this connection, the connection terminal is pressed through the LED strip. For this you can use, for example, pincers.
