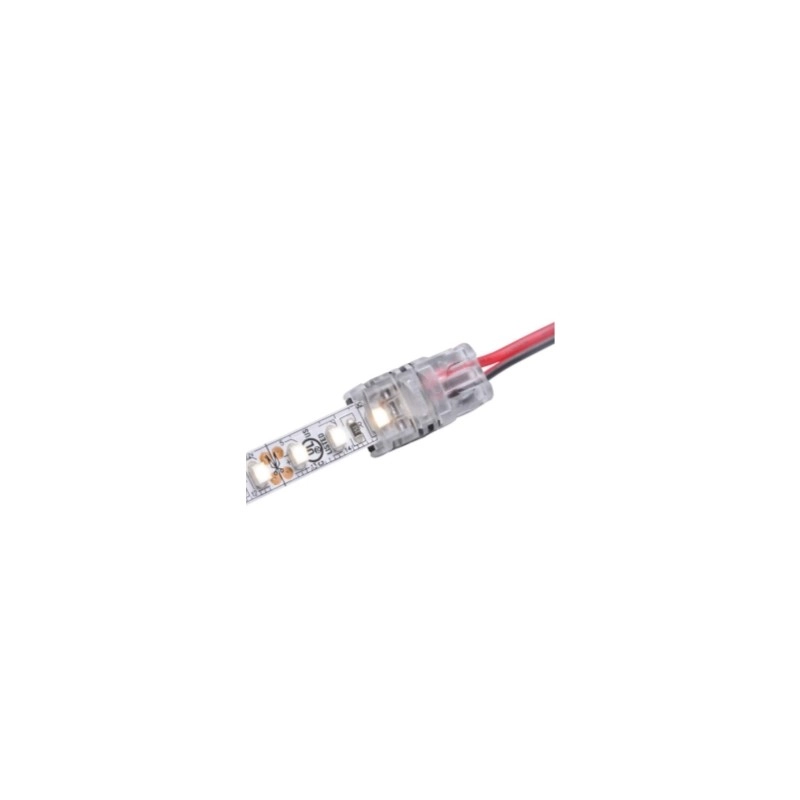

LED strip connector LRA0070, strip to power, with wire, 2 pins, 8 mm

Reference:

LED strip connector LRA0070,

strip to power, with wire,

2 pins, 8 mm, SMD,

Mono, DTW,

IP54,

Delivery time 2...4 weeks

1,22 € Tax included

1,22 € per tk

0.05 kg

The minimum purchase order quantity for the product is 20

Data sheet

Strip max width - (mm) 8
Number of contatcs 2
Suitable for LED strip Mono, DTW
Max voltage - (V DC) 24
Max current - (A) 3,5
Strip type SMD
Distance between contacts - (mm) 3,6
Width - (mm) 12,6
Height - (mm) mm
Strip IP 54
Body color transparent/black
Cable color whie/white
Cable length - (cm) 15
Wire corss-section - (mm²) 0,52
Wire corss-section - (AWG) 20
Function power connection
Materials PC, copper, PVC
Warranty - (y) 2

More info

For a better connection, you can use soldering to connect the strips, but this is not possible every time. Then it's good to use the fast connection.

Please pay attention that the quick connection can be used at either end of the strip. This causes a situation where the colors of the cable or contact markings are different, i.e. in a mirror image.

For this connection, the connection terminal is pressed through the LED strip. For this you can use, for example, pincers.
