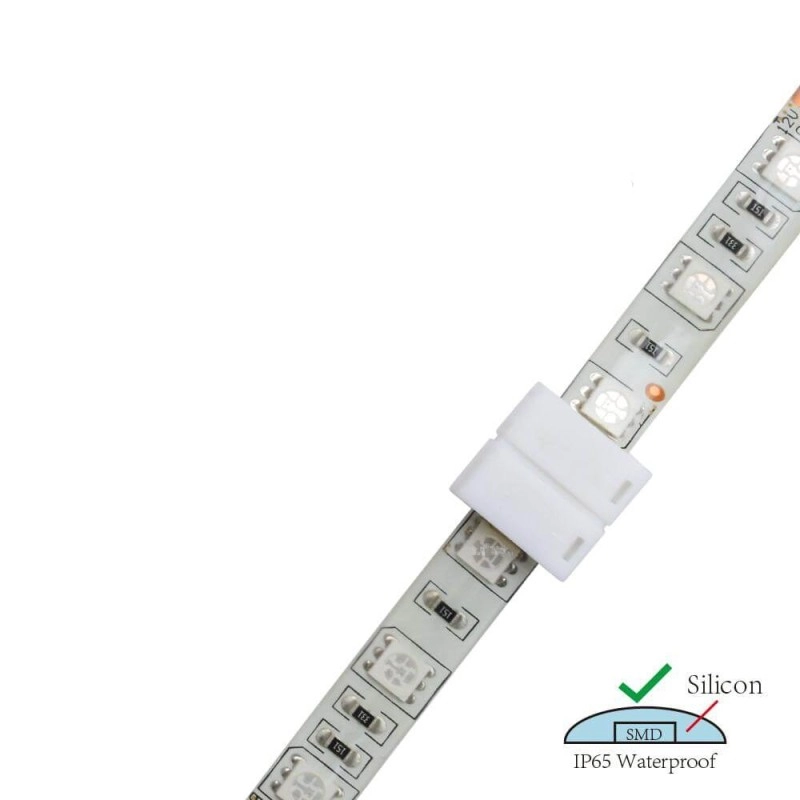

LED strip connector LRA0189, strip to strip, no wire, "I", 4 pins, 10 mm
Reference: 16-000292
LED strip connector LRA0189,
strip to strip, no wire,
4 pins, 10 mm, SMD,
RGB,
IP54
Delivery time 2...4 weeks
Data sheet
Strip max width - (mm) | 10 |
Number of contatcs | 4 |
Suitable for LED strip | RGB |
Max voltage - (V DC) | 24 |
Max current - (A) | 5 |
Strip type | SMD |
Width - (mm) | 15,4 |
Length - (mm) | mm |
Height - (mm) | mm |
Strip IP | 54 |
Body color | white |
Function | continuation |
Connection shape | "I" |
Materials | nylon (PA66), copper |
Warranty - (y) | 2 |
More info
For a better connection, you can use soldering to connect the strips, but this is not possible every time. Then it's good to use the fast connection.
Please pay attention that the quick connection can be used at either end of the strip. This causes a situation where the colors of the cable or contact markings are different, i.e. in a mirror image.
