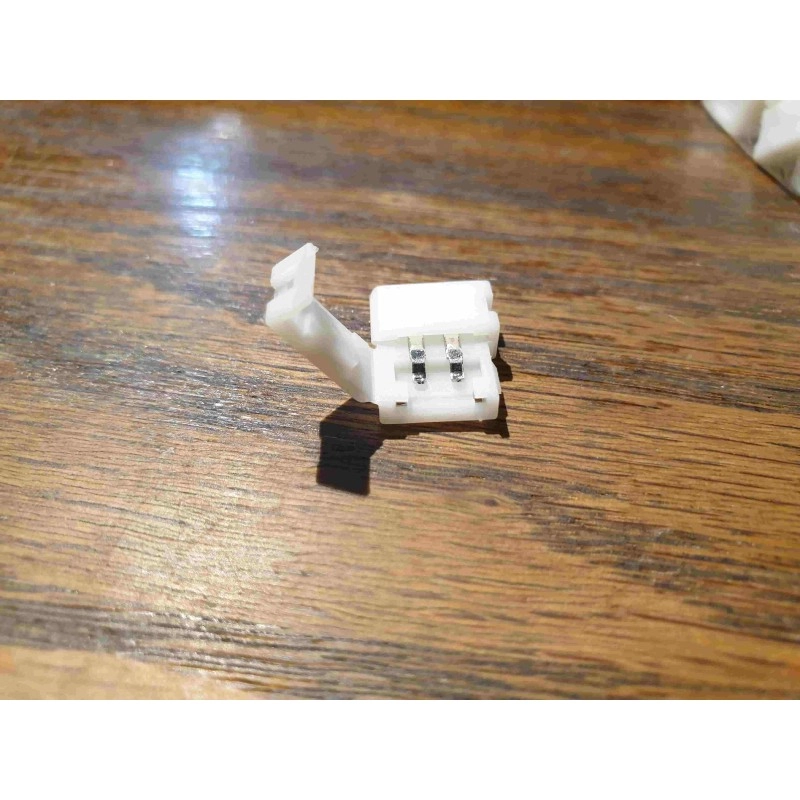

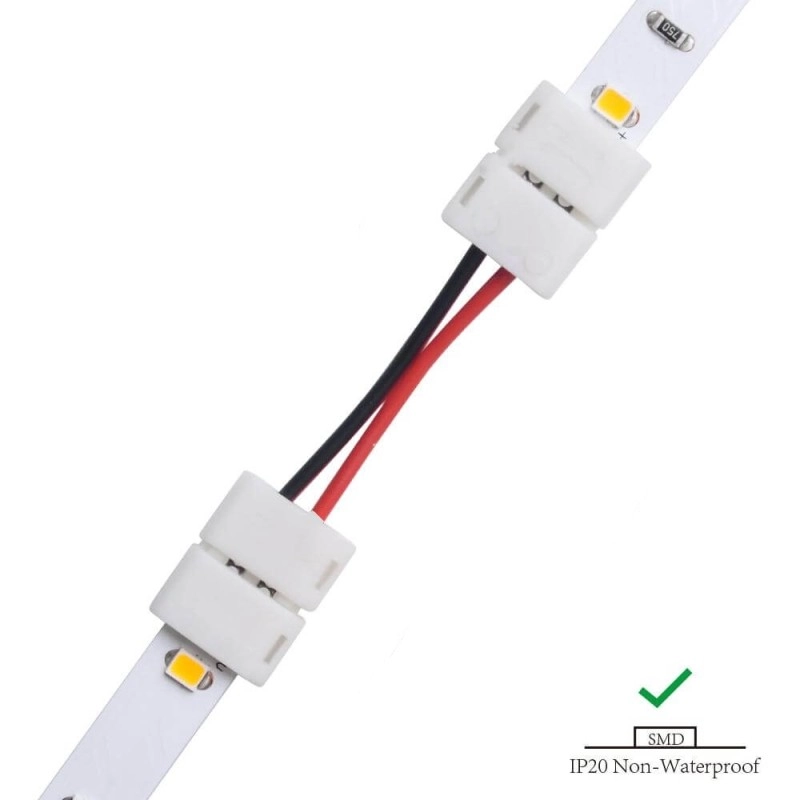

LED strip connector LRA0197, strip to strip, with wire, 2 pins, 8 mm
Reference:
LED strip connector LRA0197,
strip to strip, with wire,
2 pins, 8 mm, SMD,
Mono, DTW,
IP20
Delivery time 2...4 weeks
Data sheet
Strip max width - (mm) | 8 |
Number of contatcs | 2 |
Suitable for LED strip | Mono, DTW |
Max voltage - (V DC) | 24 |
Max current - (A) | 3,5 |
Strip type | SMD |
Distance between contacts - (mm) | 3,6 |
Width - (mm) | 12,5 |
Height - (mm) | mm |
Strip IP | 20 |
Body color | white |
Cable length - (cm) | 15 |
Cable color | whie/white |
Wire corss-section - (mm²) | 0,34 |
Wire corss-section - (AWG) | 22 |
Function | continuation |
Materials | nylon (PA66), copper, PVC |
Warranty - (y) | 2 |
More info
For a better connection, you can use soldering to connect the strips, but this is not possible every time. Then it's good to use the fast connection.
Please pay attention that the quick connection can be used at either end of the strip. This causes a situation where the colors of the cable or contact markings are different, i.e. in a mirror image.
