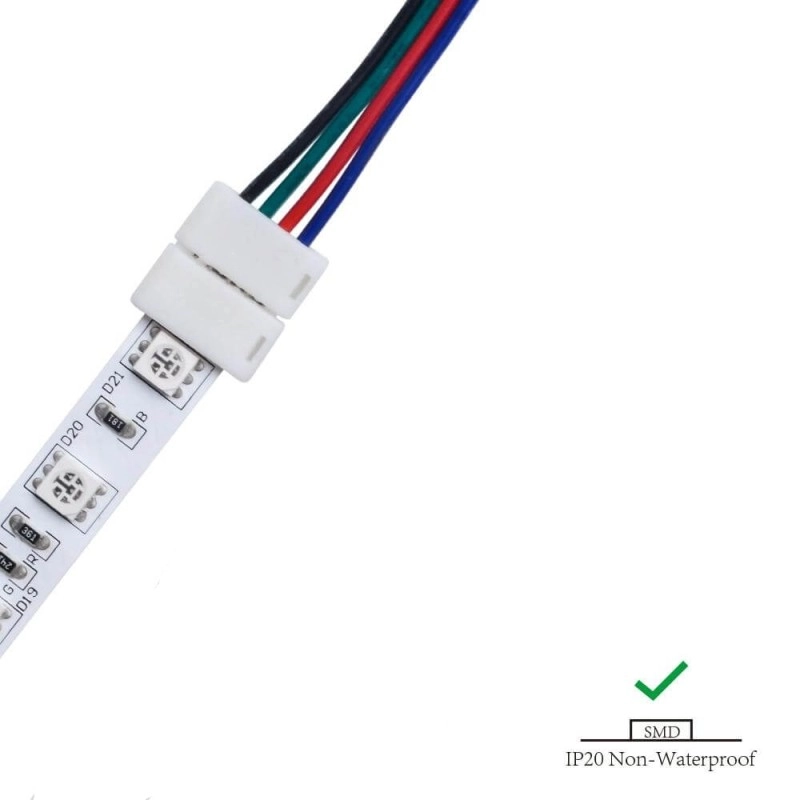

LED strip connector LRA0205, strip to power, with wire, 4 pins, 10 mm

Reference: 16-000314

LED strip connector LRA0205,

strip to power, with wire,

4 pins, 10 mm, SMD,

RGB,

IP20,

Delivery time 2...4 weeks

0,46 €

0,46 € per tk

The minimum purchase order quantity for the product is 20

Data sheet

Strip max width - (mm) 10
Number of contatcs 4
Suitable for LED strip RGB
Max voltage - (V DC) 24
Max current - (A) 3,5
Strip type SMD
Width - (mm) 14,5
Height - (mm) mm
Strip IP 20
Body color white
Cable color blue/red/green/black
Cable length - (cm) 15
Wire corss-section - (mm²) 0,34
Wire corss-section - (AWG) 22
Function power connection
Materials nylon (PA66), copper
Warranty - (y) 2

More info

For a better connection, you can use soldering to connect the strips, but this is not possible every time. Then it's good to use the fast connection.

Please pay attention that the quick connection can be used at either end of the strip. This causes a situation where the colors of the cable or contact markings are different, i.e. in a mirror image.
