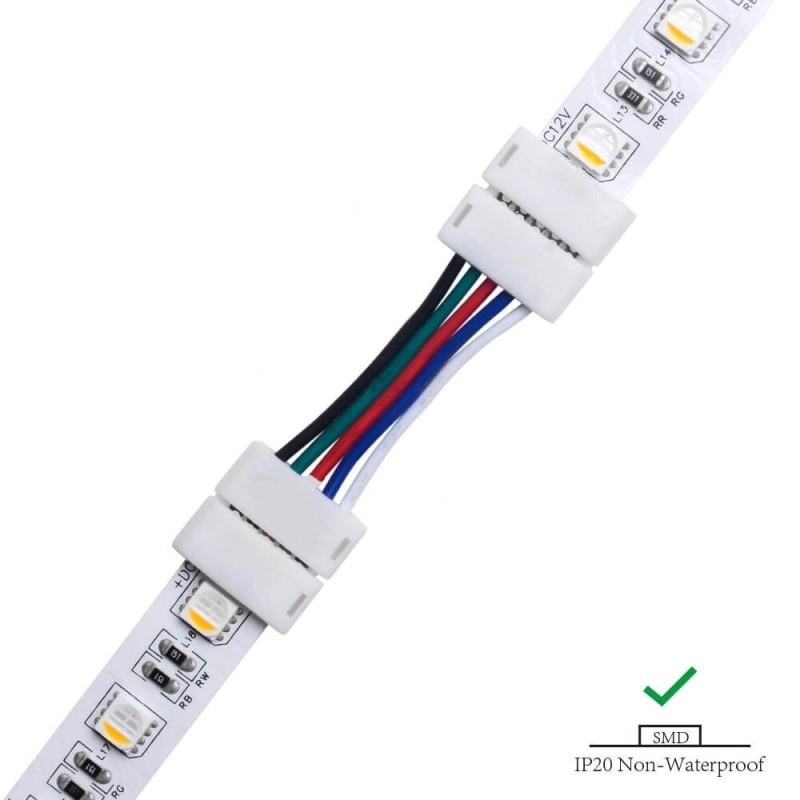

LED strip connector LRA0213, strip to strip, with wire, 5 pins, 12 mm

Reference: 16-000322

LED strip connector LRA0213,

strip to strip, with wire,

5 pins, 12 mm, SMD,

RGBW,

IP20,

Delivery time 2...4 weeks Warning: Last items in stock!

0,85 €

0,85 € per tk

The minimum purchase order quantity for the product is 20

Quantity

Rating: Be the first to write a review!

Data sheet

Strip max width - (mm)	12
Number of contatcs	5
Suitable for LED strip	RGBW
Max voltage - (V DC)	24
Max current - (A)	3,5
Strip type	SMD
Width - (mm)	16,5
Height - (mm)	mm
Strip IP	20
Body color	white
Cable color	white/blue/red/green/black
Cable length - (cm)	15
Wire corss-section - (mm²)	0,34
Wire corss-section - (AWG)	22
Function	continuation
Materials	nylon (PA66), copper
Warranty - (y)	2

More info

For a better connection, you can use soldering to connect the strips, but this is not possible every time. Then it's good to use the fast connection.

Please pay attention that the quick connection can be used at either end of the strip. This causes a situation where the colors of the cable or contact markings are different, i.e. in a mirror image.
