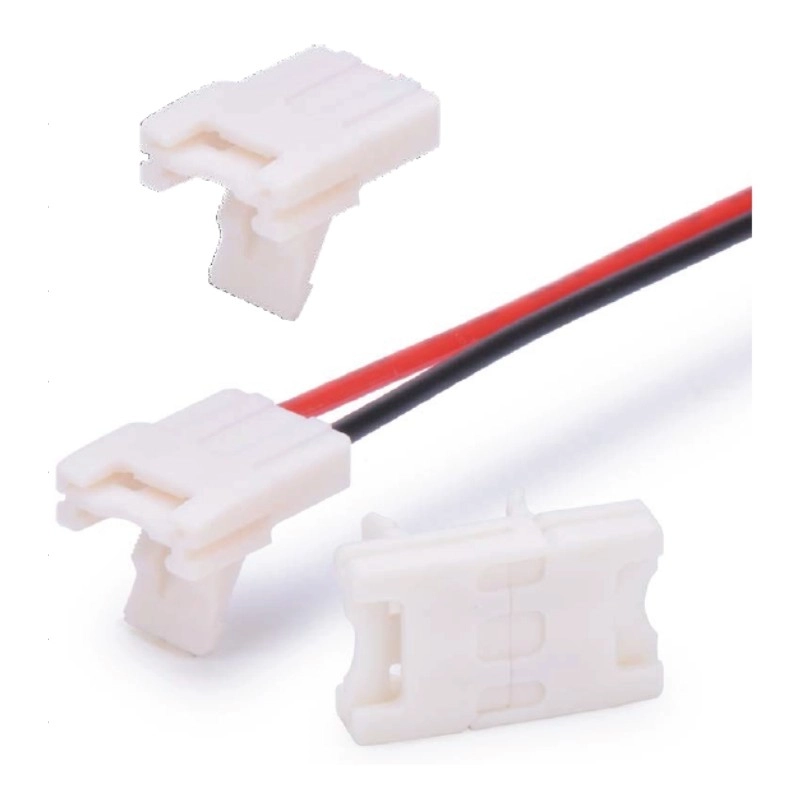

LED strip connector LRA0223, strip to power, with wire, 2 pins, 10 mm

Reference:

LED strip connector LRA0223,

strip to power, with wire,

2 pins, 10 mm, SMD,

Mono, DTW,

IP20,

Delivery time 2...4 weeks Warning: Last items in stock!

0,75 € Tax included

0,75 € per tk

0.05 kg

The minimum purchase order quantity for the product is 20

Cable color

Quantity

Rating: Be the first to write a review!

Data sheet

Strip max width - (mm)	10
Number of contatcs	2
Suitable for LED strip	Mono, DTW
Max voltage - (V DC)	24
Max current - (A)	4,5
Strip type	SMD
Distance between contacts - (mm)	5
Width - (mm)	12,4
Height - (mm)	mm
Strip IP	20
Body color	white
Cable color	whie/white
Cable length - (cm)	15
Wire corss-section - (mm²)	0,52
Wire corss-section - (AWG)	20
Function	power connection
Materials	nylon (PA66), copper, PVC
Warranty - (y)	2

More info

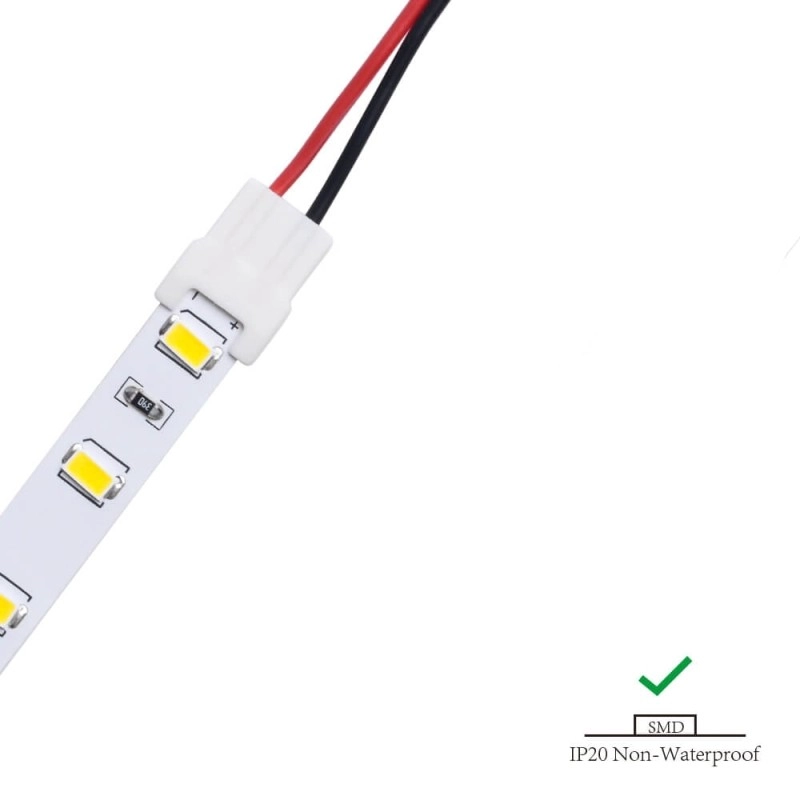

For a better connection, you can use soldering to connect the strips, but this is not possible every time. Then it's good to use the fast connection.

Please pay attention that the quick connection can be used at either end of the strip. This causes a situation where the colors of the cable or contact markings are different, i.e. in a mirror image.
